XY-G805 Natural Gas Detector High Volume Alarm Fuel Gas Leak Sensor with Solenoid Valve Output

XY-G805 Natural Gas Detector High Volume Alarm Fuel Gas Leak Sensor with Solenoid Valve Output

24/7 real-time detection of gas concentration, keep your family safe in real time

With LCD screen, alarm concentration value is displayed in real time, more visual

Three-color indicator, the use of the alarm can be observed through the alarm light

After pressing the one-key self-test button, the alarm enters the function self-test mode, if there is no problem with the product, the alarm will work normally after a few seconds

Alarm sound ≥90 decibels within 3 meters, and flashing lights to inform nearby personnel of emergency countermeasures in time

360° air intake, sensitive detection

Specifications:

Operating Voltage: AC 90~240V

Static Current: 90mA

Alarm Current: 100mA

Rating Power: 3W

Warm-up Time: About 180S

Alarm Level: 3500±1500PPM (7±3%LEL)

Sound Level: ≥85dB/m (≤3m)

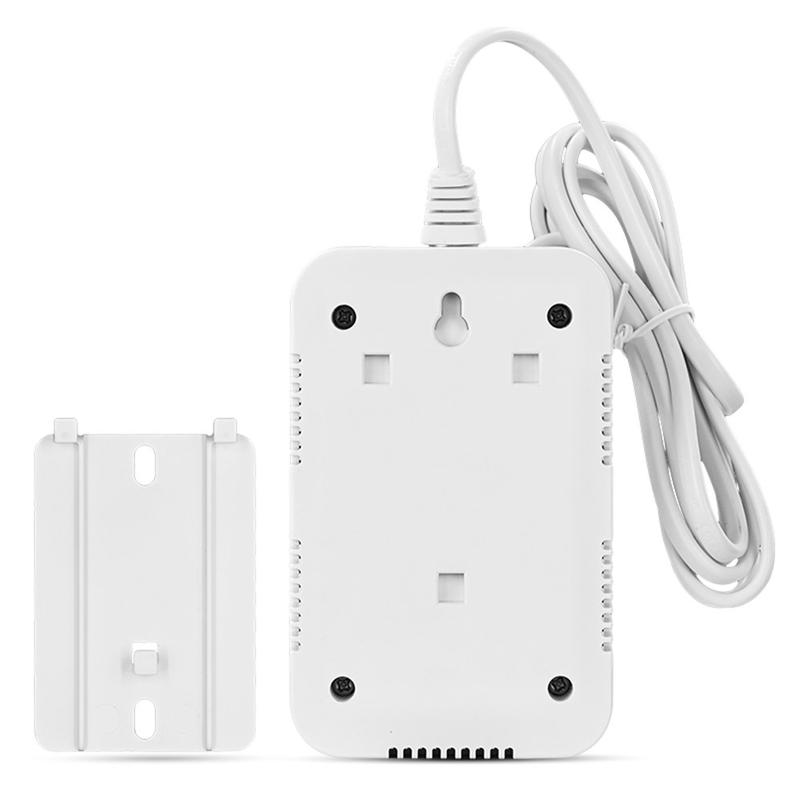

Installation Mode: Wall mounted

Response time: ≤10 seconds

Recovery time: ≤30 seconds

Alarm Indicator: Human voice alarm, red LED

flash and LED display (12 volt pulse voltage)

Operating Temperature: -10℃~+55℃

Environment Humidity: ≤95%RH (No condensation)

Installation Mode: wall mounted

Outline Size: 100*70*35mm
