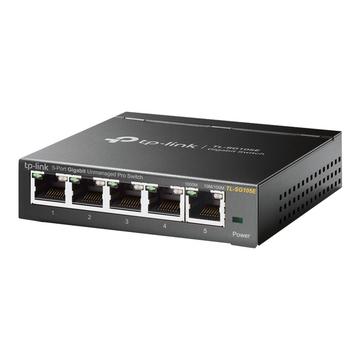

The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for small and medium business networks that require simple network management. Network administrators can effectively monitor traffic via port mirroring, loop prevention and cable diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.
Capacity: Virtual interfaces (VLANs): 32
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p
Device Type: Switch - 5 ports
Enclosure Type: Desktop
Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Quality of Service (QoS), Cable Diagnostics Function, fanless, loop prevention, Storm Control
Jumbo Frame Support: 16KB
MAC Address Table Size: 8K entries
Performance: Forwarding performance: 7.4 Mpps
Ports: 5 x 10/100/1000
Status Indicators: Port status, power
Subtype: Gigabit Ethernet
Interfaces: 5 x 1000Base-T RJ-45
Power Device: External power adapter
Voltage Required: AC 120/230 V (50/60 Hz)
Compliant Standards: FCC, RoHS
OS Required: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows Vista / XP / 7 / 8
Software Included: Drivers & Utilities
Depth: 9.8 cm
Height: 2.5 cm
Width: 10 cm
Humidity Range Operating: 10 - 90% (non-condensing)
Humidity Range Storage: 5 - 90% (non-condensing)
Max Operating Temperature: 40 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Product number: 2001162DX | EAN: 6935364022037
